Industrial speed.
Desktop footprint.
Production-grade engraving and cutting in three bed sizes, with CO₂ and fiber options. Delivered, installed, and supported locally by Advanced Marking Solutions.
Built to remove the bottleneck.
When your current engraver slows production, limits materials, or eats up operator time, the Fusion Ascent is the upgrade that pays for itself in throughput.
More jobs per shift
Engraving speeds up to 3000 mm/s keep your queue moving and turnaround times short.
Crisp on every pass
A sub-micron linear encoder works with the servo’s rotary encoder, so the head always knows exactly where it is.
Fast to learn
Touchscreen controls, joystick jogging, and material presets shorten training for new operators.
Go beyond the bed
Pass-through doors handle oversized stock with the optional Class 4 conversion kit.
Industrial internals
Brushless DC servo motors and an air-cooled RF metal/ceramic CO₂ tube are built for long production days.
Local, not long-distance
Advanced Marking Solutions handles setup, training, and service so you are running quickly.
Line it up on the first try.
IRIS™ HD+ shows a live view of the bed, so artwork lands exactly where you drop it. No test burns.
Registration camera
Reads printed marks and aligns print-to-cut contours automatically.
Quick-access optics
Swap 1.5″, 2″, and 4″ CO₂ or 3″ and 5″ fiber lenses in moments.

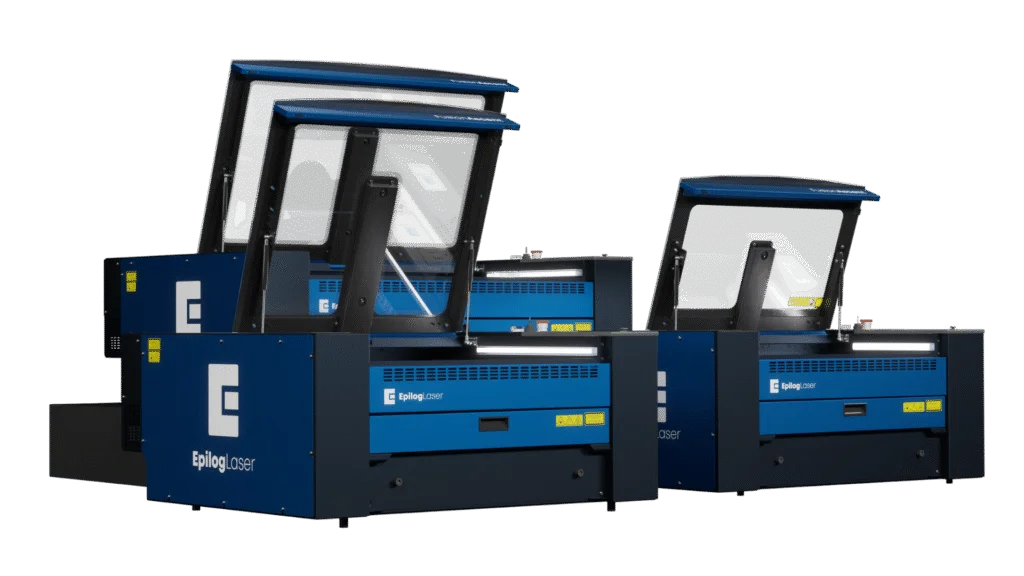

Wide-opening lid
Load parts and fixtures easily from the front.
Pass-through ready
Run long material through the machine when the job calls for it.
Built like industrial equipment. Because it is.
Designed and built in the USA by Epilog Laser, engineering laser systems since 1988.
RF metal/ceramic tube
Superior beam quality, long life, and low-cost recharges.
Brushless servo motion
5G acceleration on a long-life steel bearing drive.
Connected workflow
Ethernet, USB, and wireless, plus Laser Dashboard and the Pulse app for Mac.
Safety built in
Class 2 as shipped, with interlocks, E-stop, and key switch.

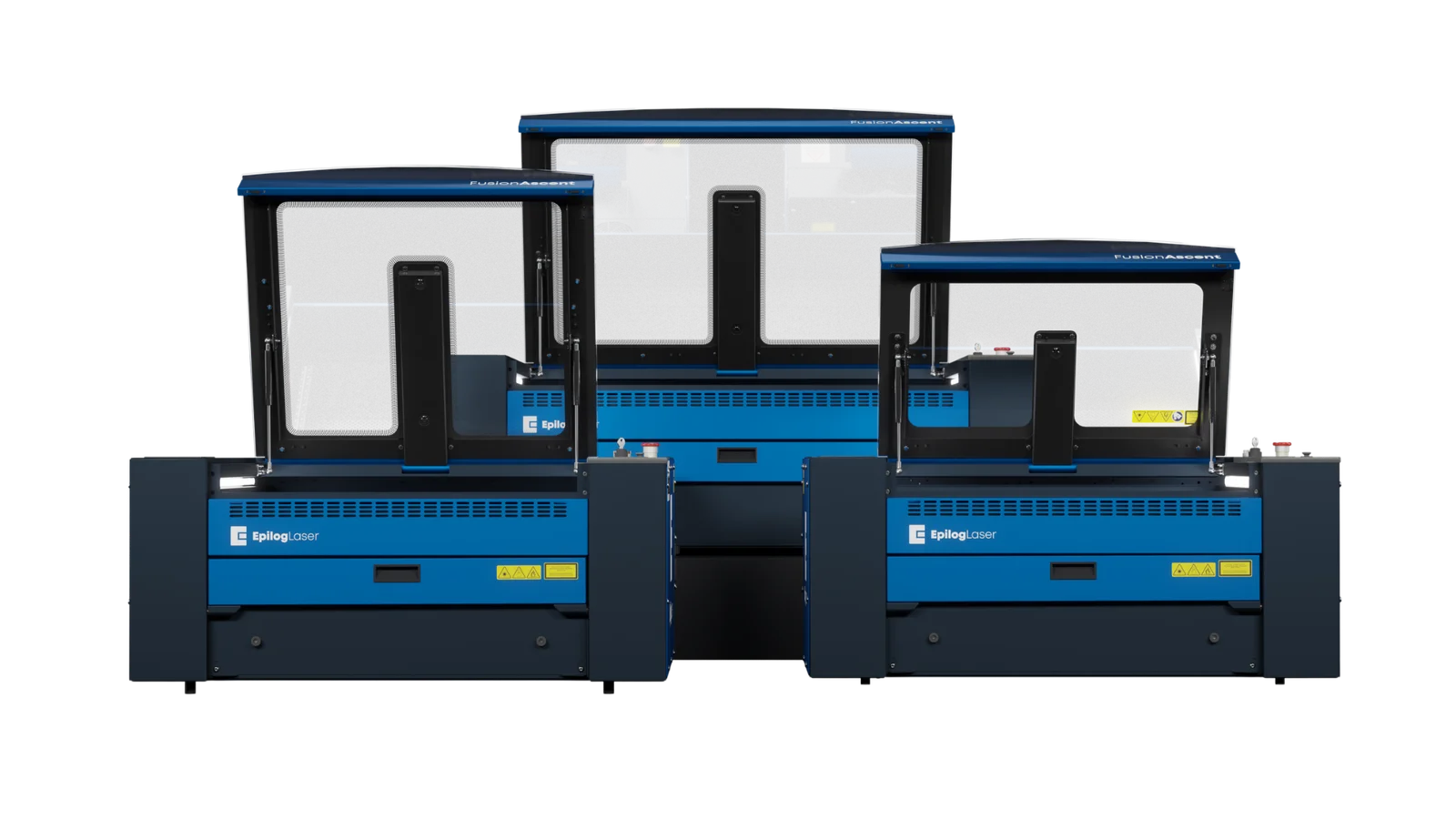

Three sizes. One standard.
Every model shares the same speed, motion system, and 7″ material capacity.
Ascent 12
24″ × 12″ work area
Ascent 24
24″ × 24″ work area
Ascent 36
36″ × 24″ work area
The full data sheet.
| Spec | Ascent 12 | Ascent 24 | Ascent 36 |
|---|---|---|---|
| Source | CO₂ or Fiber | CO₂ or Fiber | CO₂ |
| Work area | 24″ × 12″ 610 × 305 mm |
24″ × 24″ 610 × 610 mm |
36″ × 24″ 914 × 610 mm |
| CO₂ wattage | 30, 40, 60 W | 40, 60, 80 W | 40, 60, 80 W |
| Fiber wattage | 30 W MOPA | 60 W MOPA | N/A |
| Max speed | 3000 mm/s (120 IPS) | ||
| Motion | 5G acceleration · Brushless DC servo motors | ||
| Material height | 7″ (178 mm) · 2″ with pass-through | ||
| Included lens | 2″ CO₂ / 3″ Fiber | 2″ CO₂ / 3″ Fiber | 2″ CO₂ |
| Optional lens | 1.5″ / 4″ CO₂, 5″ Fiber | 1.5″ / 4″ CO₂, 5″ Fiber | 1.5″ / 4″ CO₂ |
| Included table | Honeycomb / Task plate | Honeycomb / Task plate | Honeycomb |
| Footprint | 41.76″ × 25.9″ × 20.15″ | 41.76″ × 38.47″ × 20.15″ | 53.76″ × 38.47″ × 20.15″ |
| Weight | 147 lbs | 175 lbs | 212 lbs |
| Electrical | Auto-switching 100–240 V · 50/60 Hz single phase | ||
| Ventilation | 350–400 CFM exhaust or filtration · 4″ port | ||
| Laser class | Class 2 as shipped · Class 4 with conversion kit | ||
Swipe the table to compare models →
Air compressor required for air assist, sold separately. Specifications subject to change. Confirm current configurations with Advanced Marking Solutions.
Accessories.
Air Assist Pump
Clears heat and gases from the cut for cleaner edges and fewer flare-ups.
Class 4 Conversion Kit
Enables pass-through for oversized stock. Includes dongle, risers, and safety glasses.
Rotary Attachments
Rim-style for tumblers and glassware, or 3-jaw chuck for precise alignment.
Floor Stand
A wheeled cart sized for each model to reposition the machine easily.
Riser Cones
Lift work during vector cutting to reduce backside residue.
Optional Lenses
1.5″ for detail, 4″ for thick cutting, 5″ fiber for curved surfaces.
Before you buy.
How does the Ascent compare to the Fusion Maker and Edge?
The Ascent is the step up for production shops, adding faster engraving, RF metal/ceramic CO₂ tubes, a linear encoder, and pass-through capability.
What is the tallest item I can engrave?
Up to 7″ with the standard enclosure. With pass-through enabled, maximum material thickness is 2″.
Do operators need special safety gear?
Not for normal use. The Ascent ships as a Class 2 interlocked system. Safety glasses come with the Class 4 kit for pass-through work.
Should I choose CO₂ or fiber?
CO₂ handles wood, acrylic, leather, glass, and coated metals. Fiber marks bare metals and many plastics. We will recommend the right source for your materials.
What warranty is included?
Two years on the machine and laser tube, with local service from Advanced Marking Solutions.
Is financing available?
Yes. Ask about leasing options when you request pricing.
